What Is an HT VCB Panel and How Does It Work?

Introduction

An HT VCB panel is a crucial electrical control system used in medium and high-voltage power distribution networks. It protects electrical equipment by interrupting fault currents efficiently and safely. Industries, utilities, and commercial facilities rely on these panels for operational continuity. Understanding how these systems function helps organizations plan reliable electrical infrastructure while ensuring safety, performance stability, and regulatory compliance across evolving power environments.

10 Key Components and Working Principles of HT VCB Panels

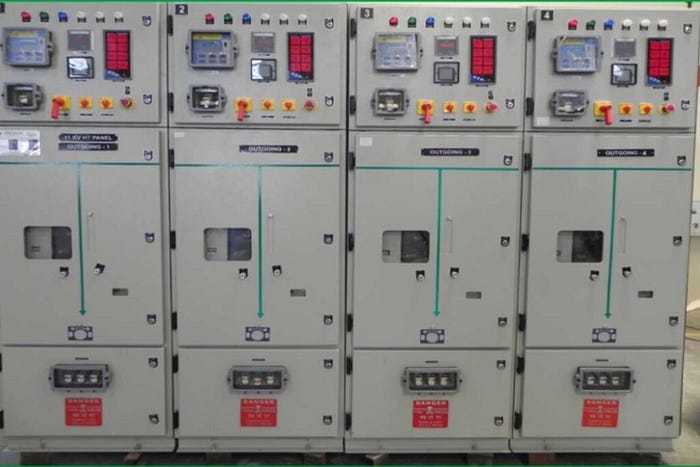

Press enter or click to view image in full size

1. Vacuum Circuit Breaker Technology

An HT panel operates using vacuum interruption technology that extinguishes electrical arcs effectively. The vacuum environment prevents oxidation and minimizes contact erosion. This ensures consistent performance during repeated operations and supports long service life across demanding industrial power distribution conditions.

2. Fault Interruption Mechanism

When abnormal current conditions occur, the breaker separates contacts within a vacuum chamber. The arc extinguishes instantly due to lack of ionized medium. This rapid response protects connected equipment from damage and prevents cascading electrical failures across connected systems.

3. Compact and Enclosed Construction

HT VCB panels feature compact, metal-clad enclosures that house critical components securely. The enclosed design enhances operator safety while preventing environmental exposure. Such construction also simplifies installation and inspection within confined electrical rooms or substations.

4. Control and Protection Relays

Integrated protection relays continuously monitor voltage, current, and fault parameters. These relays trigger breaker operations during abnormal conditions. Intelligent relay coordination ensures precise fault isolation, maintaining stability across interconnected electrical networks.

5. Mechanical Operating Mechanism

The operating mechanism converts electrical signals into mechanical action for contact movement. Spring-charged or motor-operated mechanisms ensure consistent opening and closing operations. This reliability supports dependable performance during both routine switching and emergency fault scenarios.

6. Arc-Free Switching Advantage

Vacuum technology enables arc-free switching, reducing maintenance requirements. Absence of arc gases improves safety and operational cleanliness. Facilities using the best HT panel benefit from lower wear and minimal downtime over extended operational cycles.

7. Thermal and Dielectric Strength

High dielectric strength of vacuum interrupters enhances insulation performance. Efficient thermal dissipation prevents overheating during load fluctuations. These features support stable operation under variable electrical demands without compromising safety margins.

8. Compatibility with Automation Systems

Modern HT panels integrate easily with SCADA and monitoring systems. Real-time diagnostics enhance visibility into system health. This integration enables predictive maintenance strategies and improves overall power management efficiency.

9. Longevity and Operational Durability

Reduced mechanical wear extends operational lifespan significantly. The sealed vacuum chamber remains unaffected by external contaminants. Organizations seeking the top HT VCB panel prioritize durability for long-term infrastructure planning.

10. Compliance with Electrical Standards

HT VCB panels are designed to meet national and international electrical safety standards. Compliance ensures reliable performance under regulated conditions. Certification also supports easier approvals during inspections and audits.

Benefits of Buying an HT VCB Panel

1. Ensures rapid fault isolation and equipment protection
2. Reduces maintenance through arc-free operation
3. Enhances safety for operators and installations
4. Supports long-term reliability and durability
5. Improves system efficiency and uptime

Organizations selecting the top HT panel benefit from dependable electrical protection across diverse operating environments.

How Can We Help You?

ENEEPL assists clients by providing technical guidance for selecting appropriate HT VCB panel configurations based on operational requirements. Our team supports system planning, specification understanding, and integration considerations. We focus on aligning electrical protection strategies with infrastructure goals while maintaining compliance, safety, and performance expectations across industrial and commercial projects.

Why Choose ENEEPL?

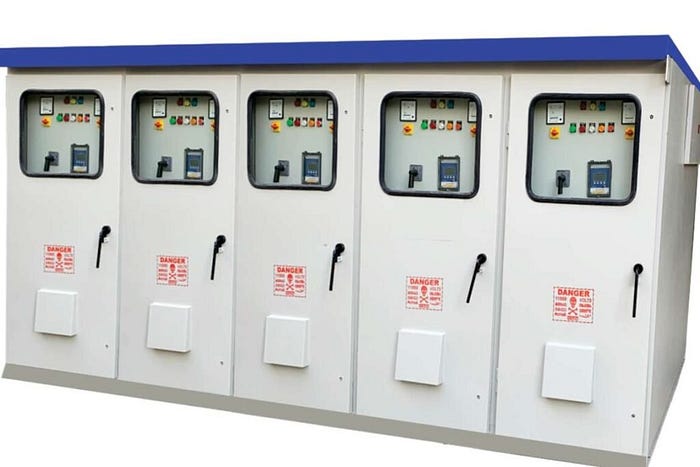

Press enter or click to view image in full size

1. Engineering-driven design approach
2. Emphasis on safety and compliance
3. Experience across diverse power systems
4. Support for system integration planning
5. Transparent technical guidance

ENEEPL applies structured engineering expertise to help organizations evaluate solutions before they Buy HT VCB panel systems. Our focus remains on delivering clarity, reliability, and informed decision-making using the best HT panel configurations suited for specific operational demands.

Final Thoughts

Understanding how an HT VCB panel works empowers organizations to make informed electrical infrastructure decisions. Its vacuum interruption technology, safety features, and durability make it a preferred choice for modern power distribution. Selecting the top HT panel ensures consistent protection, operational efficiency, and long-term system reliability without unnecessary complexity.
